Hello and welcome! Today, I'll guide you through a quick tutorial on how to remove and replace the fog light on a 2004 Volkswagen Passat. This process should be applicable to other vehicles equipped with similar fog lights, including Audi models with the same feature. While removing the fog lamp is relatively straightforward, it's important to proceed with caution to avoid any damage. Let's get started.

Step 1: Removing the Fog Light

1. Start by gently popping the fog light out from the side and pulling it towards you.
2. Locate and remove the three screws securing the fog light in place. There is also a fourth screw that needs to be removed to fully detach the light.

Step 2: Disconnecting the Connector

1. After removing the screws, disconnect the connector by pulling it out. To do this, first release the tab holding the connector in place and then pull the connector out.
2. If the connector is damaged, don't worry. You can easily replace it by popping in a new one.

Disconneting the connector

Step 3: Replacing The Bulb

1. To replace the bulb, twist and unlock the bulb holder. This can be done by pressing down on the upper part and turning it counterclockwise. Once unlocked, remove the bulb holder and set it aside. You'll find the bulb inside the holder. Gently press the two clips securing it and pull it out.
2.




   Replacing the bulb

Step 4: Installing the New Bulb

1. Take the old bulb to your local auto parts store to get a replacement. When handling the new bulb, avoid touching it with greasy or dirty hands, as this can reduce its lifespan.
2. Carefully insert the new bulb into the bulb holder. Reattach the bulb holder by placing it back in the housing and securing it with the clips.

Step 5: Reassembling the Fog Light

1. Before reassembling, ensure that all parts are aligned correctly. Turn the bulb holder clockwise to lock it in place. Carefully place the fog light back into its original position. Insert and tighten the screws to secure the fog light. Make sure the connector is properly attached.

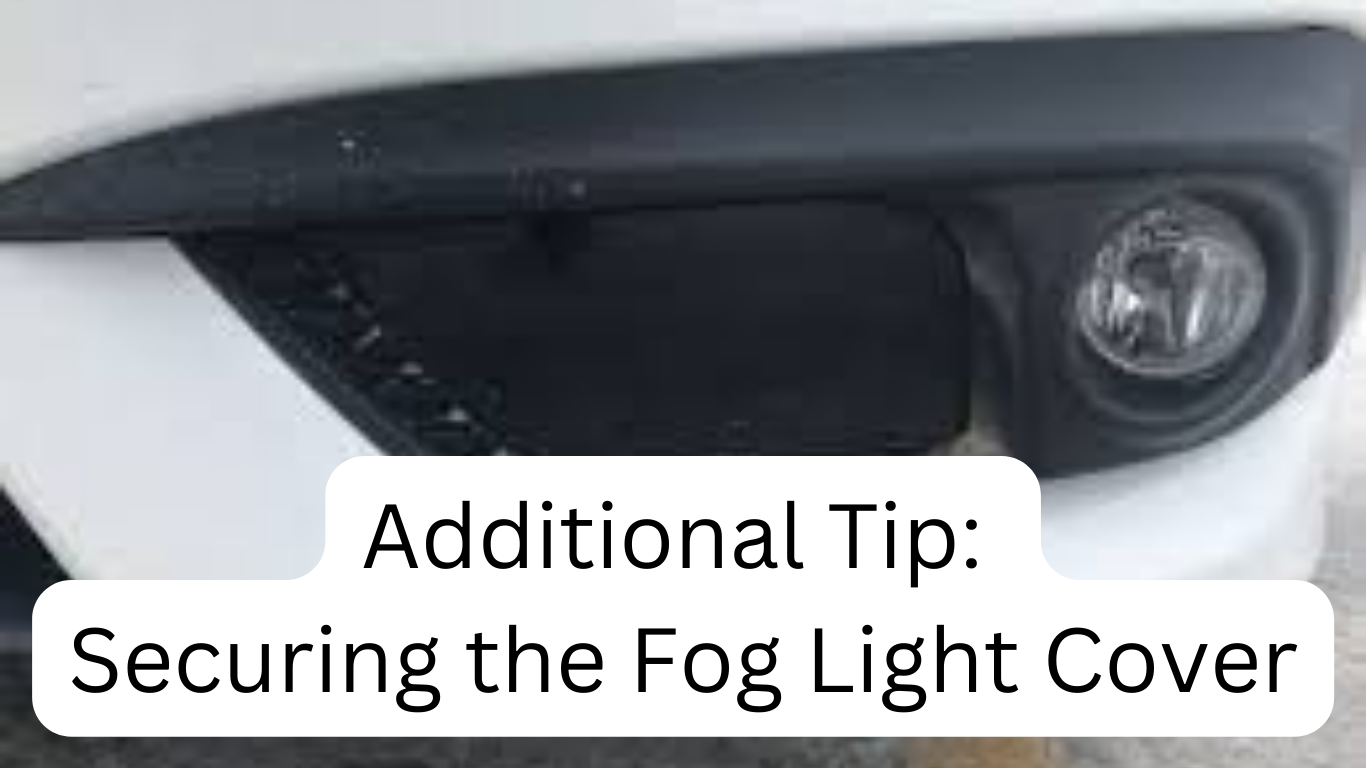

Additional Tip: Securing the Fog Light Cover

1. When placing the fog light cover back, ensure that it clicks into place securely.
2. Prevent the fog light cover from coming loose by using zip ties. Place one zip tie on top and another at the bottom of the cover's bracket.

In conclusion, this guide provides a comprehensive walkthrough for replacing a fog light and bulb in a 2004 Volkswagen Passat. If you found this information helpful, please consider giving it a thumbs up and leaving a comment. If you're interested in more content like this, stay tuned. Thank you for reading!
